MT-Series (25-75Nm)

PROPERTIES

DESCRIPTION

Multiturn electric actuator, aluminium housing with manual override by hand wheel. In accordance with CE-ROHS-REACH Directives.



TORQUE RANGE

  • 25 Nm
  • 50 Nm
  • 75 Nm

TECHNICAL DATA

  • Multivolt actuator
    • 100V to 240V 50/60Hz (100V to 300V DC)
    • 24V to 48V 50/60Hz (24V to 72V DC)
  • On-off, pulse and 3 modulating points control
  • Integrated 4-20mA or 0-10V positioning solution with feedback signal
  • Integrated Bluetooth® control (AXMART®)
  • RS485 connexion
  • 4 adjustable limit switches 5A
  • ISO5210
    • A (with drive bush): Ø25mm max
    • B1 (with drive bush): Ø42mm max
    • B3: Ø20mm max
    • C: Ø43mm max
  • Manual override
  • Electronic torque limiter
  • Failure feedback relay (normal duty, failure)
  • Visual position indicator
  • Regulated anticondensation heater
  • Single multipin connector

TYPES

OPTIONS

  • Version for marine applications
  • VIB – Version for applications with vibrations
  • High durability coating, 15-year warranty

CONDITIONS OF USE

  • Duty rating: S4 50% (CEI34)
  • Working temperature: -20°C to +70°C
  • Enclosure IP68 – 5m / 72h
  • Weight: 19 kg – 23 kg

DOCUMENTATION

on request

REQUEST

more details ...

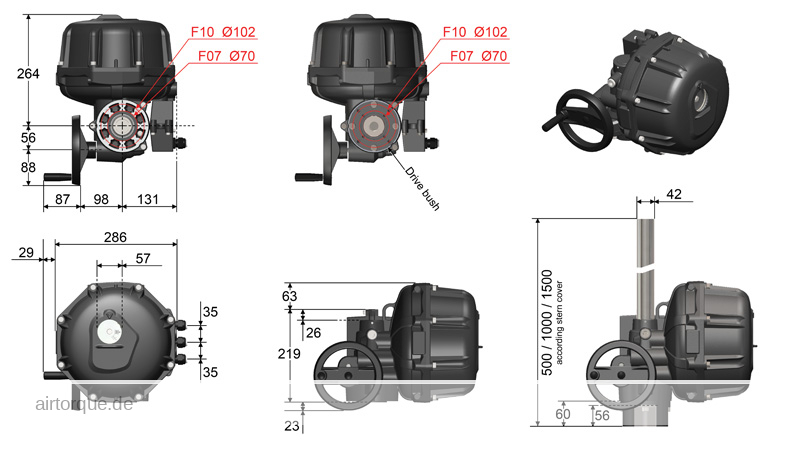

  • Drive bush for threaded valve stem (Ø25mm max.)
  • Connection with
    • four M10 threaded holes (depth 20mm) or
    • four M8 threaded holes (depth 15mm)
  • Drive bush for large keyed bore (Ø42mm & height 48mm max.)
  • Connection with
    • four M10 threaded holes (depth 20mm) or
    • four M8 threaded holes (depth 15mm)
  • Small keyed bore (Ø20mm max.)
  • Connection with
    • four (0° or 45°for F10) M10 threaded holes (depth 20mm)
    • or four M8 threaded holes (depth 15mm)
  • Shaft with tenons (Ø43mm)
  • Connection with
    • four (0° or 45° for F10) M10 threaded holes (depth 20mm)
    • or four M8 threaded holes (depth 15mm)
