FEATURES ER PLUS SERIES

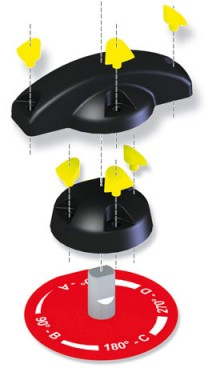

Manual override with position indicator for ER10-20.

regular indicator

visualisation of  valves with 3 ports possible

UPPER CAMS: feedback adjustment

1. Signal -> CLOSED position (black)
2. Signal -> OPEN position (white)

LOWER CAMS: end of stroke angle definition (attention, for skilled operators only, wrong adjustment might damage the actuator)

1. Signal -> CLOSED position (black)
2. Signal -> OPEN position (white)

• Internal DC motor with electronic control board (2 options):
  • 12V to 48V DC /15V to 30V AC
  • 100V to 240V AC (50/60Hz) / 100V to 350V DC
• Duty S4 – 50% (IEC 34)
• Control: ON / OFF or 3-point modulation mode
• Electronic torque limiter, software controlled
• Version with fail-safe security, to move to the safety position in case of power failure
• 3P + ISO43650 connections or cable gland
• RS485 connection for access to microcontroller
• Integrated self-regulating anti condensation heating resistors
• Error feedback relay

GEARING

• 10 to 100 Nm
• operating time (depends on model): 7s to 119s
• self-locking gears
• manual override (declutching button is spring return)

VALVE ADAPTION

• ISO 5211
  • ER10-20-35: F03-F04-F05
  • ER35-60-100: F05-F07
• reducers available (double square, single square, flat head)

CONNECT & CONTROL
The Bluetooth® communication module offers a secured connection with the actuators. It enables the communication with any actuator, whether visible or not and even when concealed (actuators located under floor, in a pit, above ceiling, at height). In all situations, this interface is perfect as a local control device.

CHECK
Servicing an installation with actuators equipped with the Bluetooth® communication module becomes an easy task. It only requires a few seconds to achieve and validate function tests using your tablet or smartphone once the Valpes Application AXMART^® has been downloaded. Maintenance operations will be much easier as you can read operation records from actuators. This is a good way to save time while minimizing risks.

PROGRAM
Thanks to AXMART®, you may assign up to 20 repeatable tasks to each actuator. Simple and cost effective! Neither programmable logic controller (PLC) – electric cabinet nor control operator is required.
